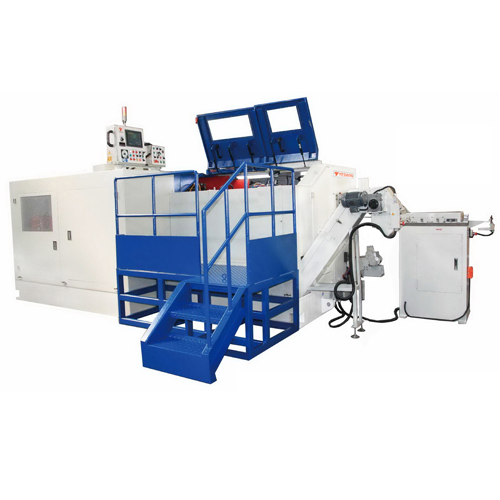

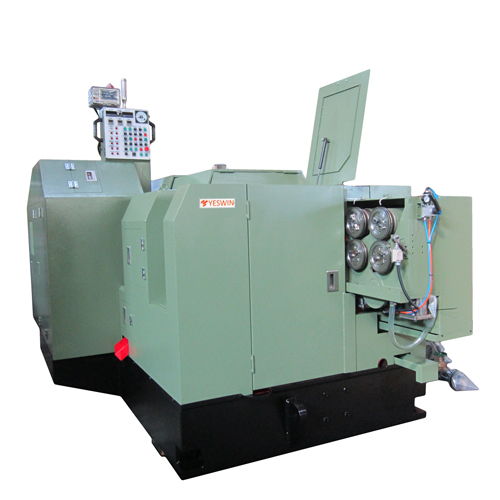

PARTS FORMER 5/6/7 STATION SERIES
YNP/YBP series is upgraded model than bolt former. Parts former supports higher power and bigger cutting diameter. With more spatial punch and die space, machines are able to make parts with complicated shapes.

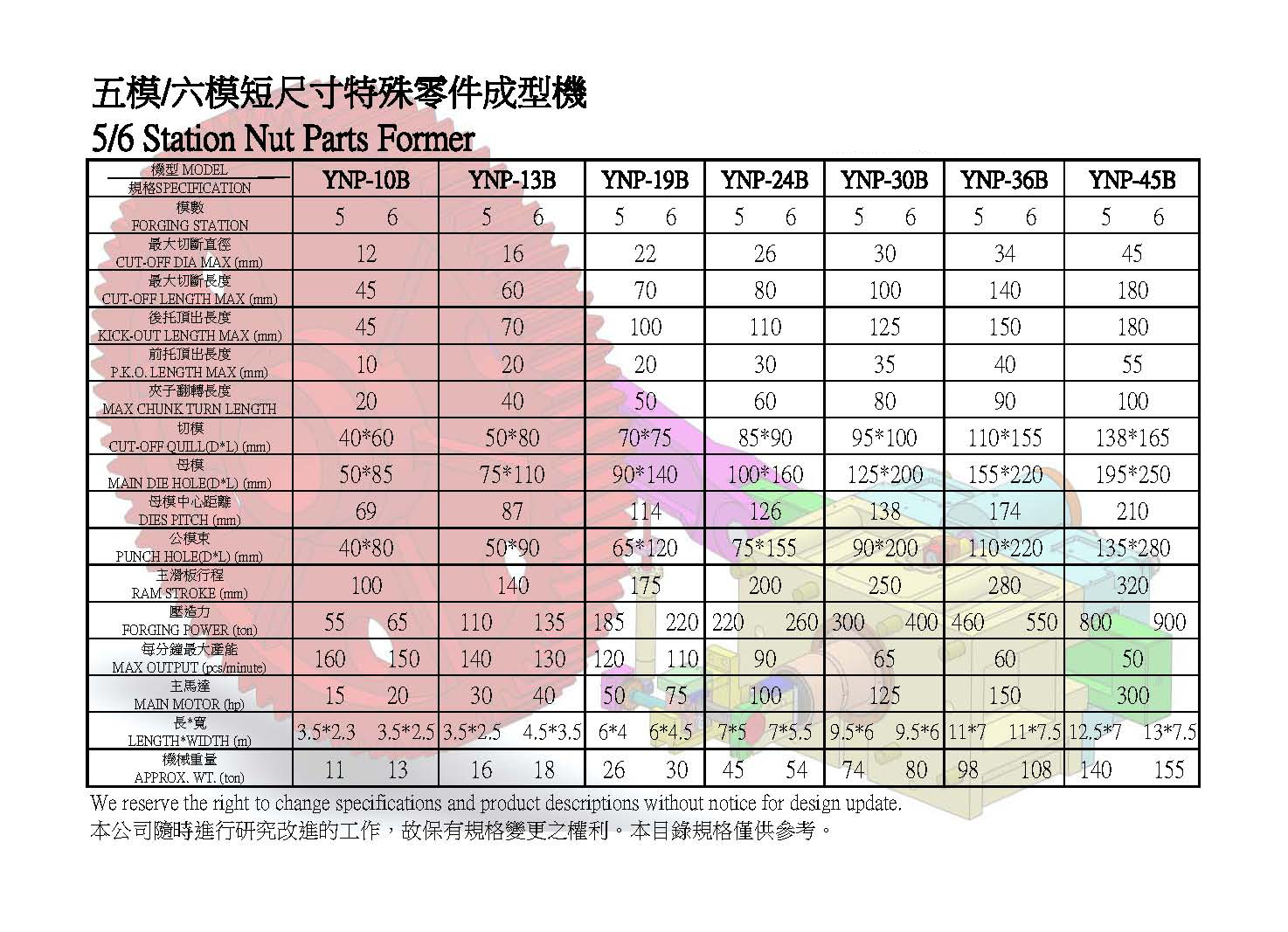

Nut Parts Formers (YNP) / Bolt Parts Formers (YBP)
- YNP series is for making short & complicate parts.

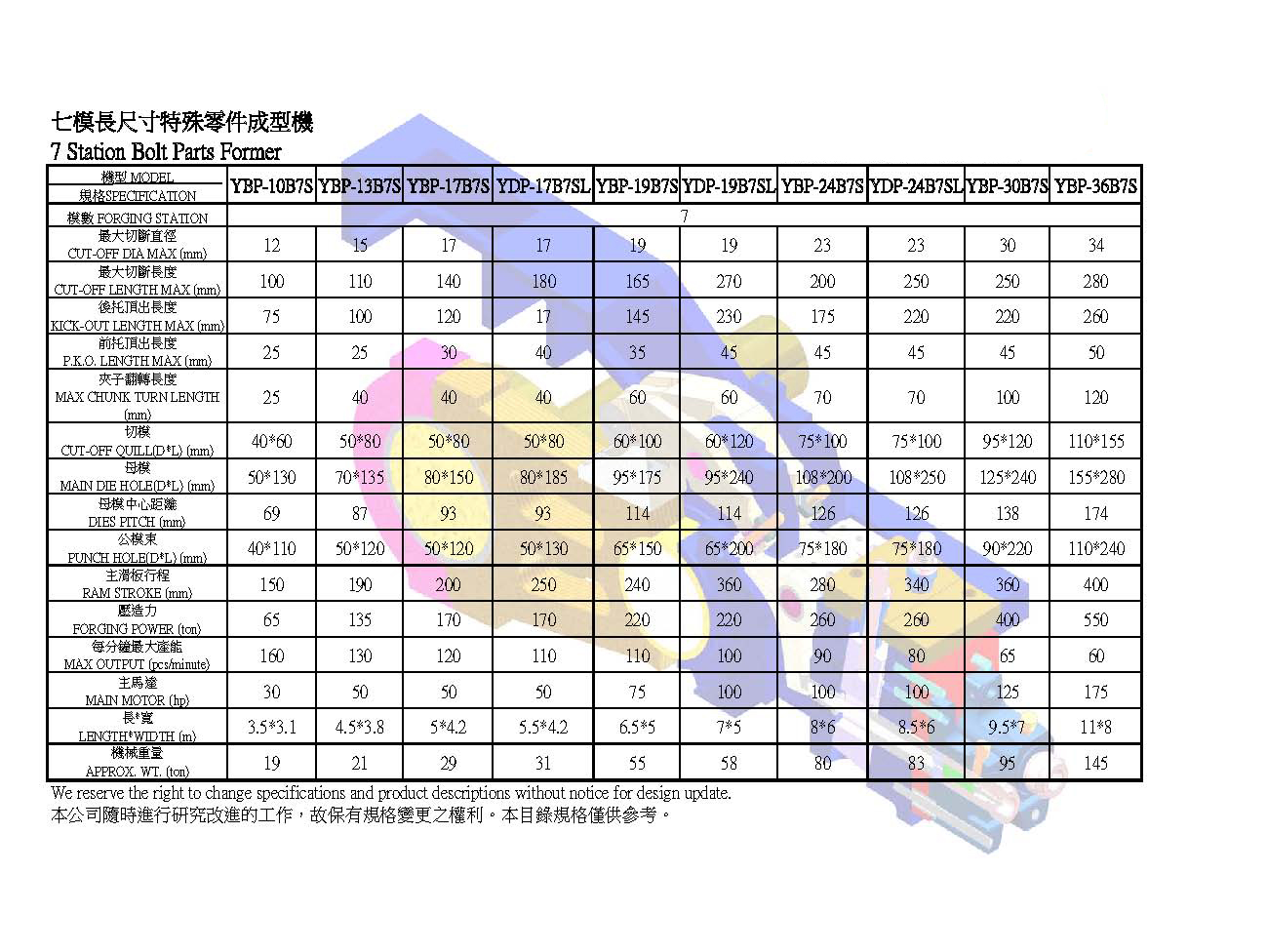

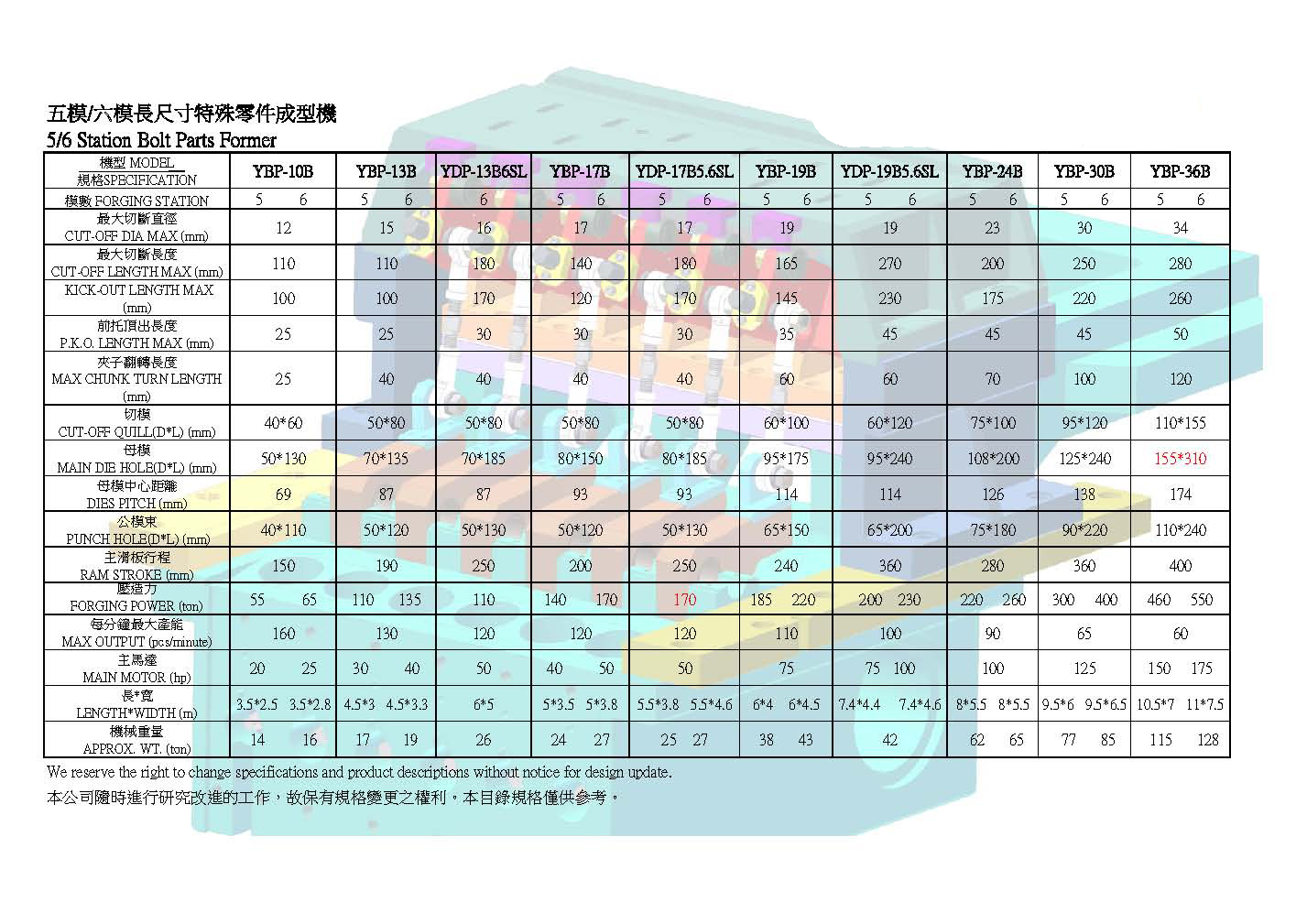

- YBP series is for making long & complicated parts.
- Both types can produce high-precision components or special fastener.

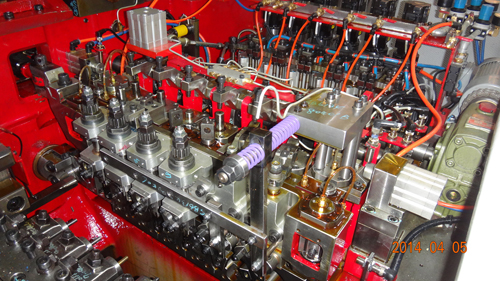

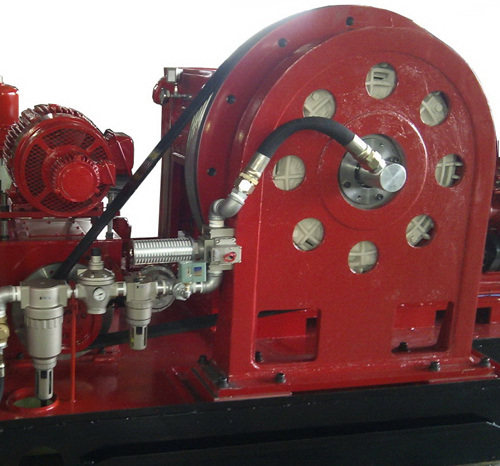

|Stopper length adjusted by hand-wheel.(Standard)||Air cluth for retaining the fly wheel power when performing jog function.(Standard)||Universal Rotary Transfer for forging parts with complicated shapes.(Standard)|

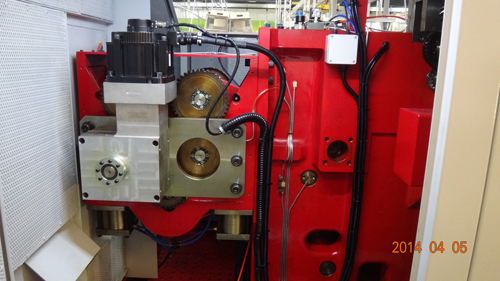

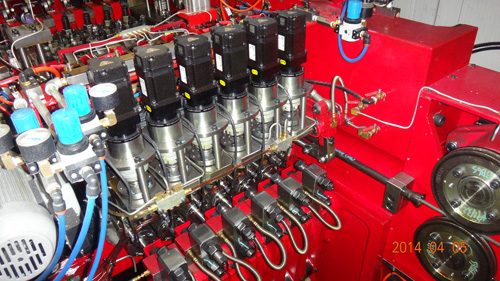

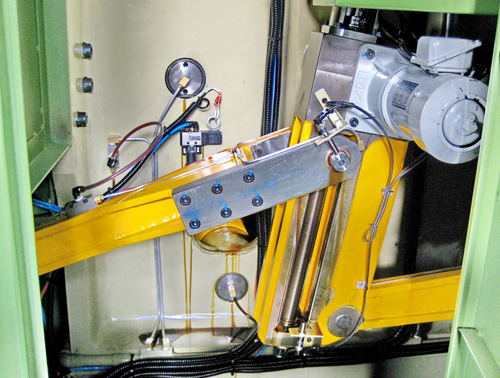

|K.O. length Controlled by servo motors for easy and precise adjustment. With HMI touch panel for easier tooling set-up and monitoring the current position & length of each station.(Optional)||Digital Feeding Length Control for easier and quicker feeding length adjustment.(Optional)||Servo Feeding Adjustment for micro and precise length control.(Optional)|
