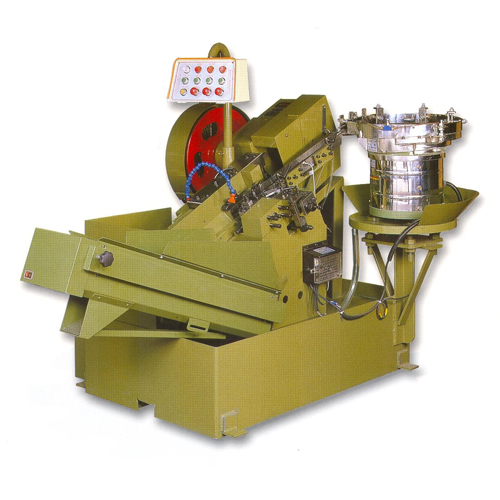

ZR 1.5HN
ZR 1.5HN
Product Number：
Diameter range: 3-6 mm
Maximum thread length: 50-75 mm
Rolling dies: 90 x 105 x 25
Capacity: 150-280 pcs/min
Shank lenght: 75mm
Optional accessories:
- Vibrator: ø520mm
- Chip separator
| MODEL | MAX THREAD DIAMETER (mm) |
MAX THREAD LENGTH (mm) |
SHANK LENGTH (mm) |
MOVING DIES STATIONARY LENGTH (mm) |
MOTOR (HP) |
CAPACITY (PCS/MIN) |
PACKING VOLUME (CM) |
WEIGHT (KG) |
|
| NW | GW | ||||||||
| ZR 1.5HN | 3-6 | 50 | 75 | 90x105x25 | 5-1/4-1/8-1/2 | 150-280 | 195x150X170 | 1600 | 1800 |
| ZR 1.5HN | 3-6 | 75 | 75 | 90x105x25 | 5-1/4-1/8-1/2 | 150-240 | 195x150x170 | 1670 | 1870 |
