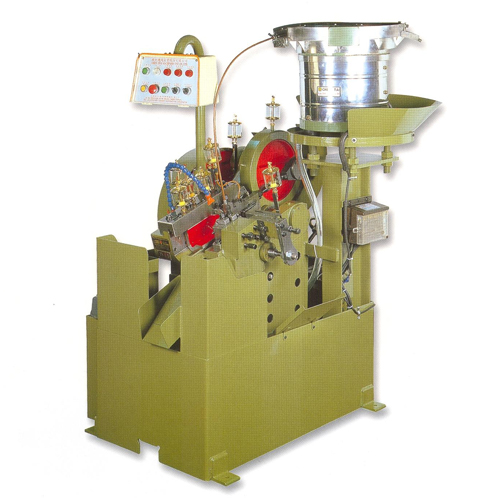

ZR 1.5
ZR 1.5
Product Number：
Diameter range: 2-5 mm
Maximum thread length: 50-76 mm
Rolling dies: 76 x 90 x 25
Capacity: 40-80 pcs/min
Optional accessories:
- Centralize lubricating system
| MODEL | MAX THREAD DIAMETER (mm) |
MAX THREAD LENGTH (mm) |
MOVING DIES STATIONARY LENGTH (mm) |
MOTOR (HP) |
CAPACITY (PCS/MIN) |
PACKING VOLUME (CM) |
WEIGHT (KG) |
|
| NW | GW | |||||||
| ZR 1.5 | 2-5 | 50 | 76x90X25 | 2-1/8-2 | 40-80 | 155x108X140 | 950 | 1100 |
| ZR 1.5 | 2-5 | 76 | 76x90x25 | 3-1/8-2 | 40-80 | 155x108x140 | 1050 | 1200 |
